Gold PVD Wave Pattern Linear Shower Drain

Luxury brushed gold linear shower drain featuring a wave-shaped decorative grate. PVD-coated 304 stainless steel, with standard or wide flange for tile-over installations.

Request a Quote

Key Features

Brushed gold PVD coating over 304 stainless steel
Decorative wave-shaped (bean) slot grate design
Removable grate for easy cleaning
Integrated water seal trap (50mm seal depth)
Standard lengths: 300/400/600/800/1000mm (custom available)
Outlet: 50mm vertical/horizontal
Flange for waterproof membrane bonding
Wide flange version for tile-over and retrofit projects
Ideal for luxury hotels, high-end residential, and designer bathrooms

Materials & Specifications

Available Materials

304 Stainless SteelBrushed Gold PVD Coating

Ideal For

Luxury hotel bathroomsHigh-end residential showersDesigner wet roomsBoutique spa projects

Product Details

The Gold PVD Wave Pattern Linear Shower Drain is a premium decorative drainage solution designed for luxury bathrooms where the drain is a design feature, not an afterthought.

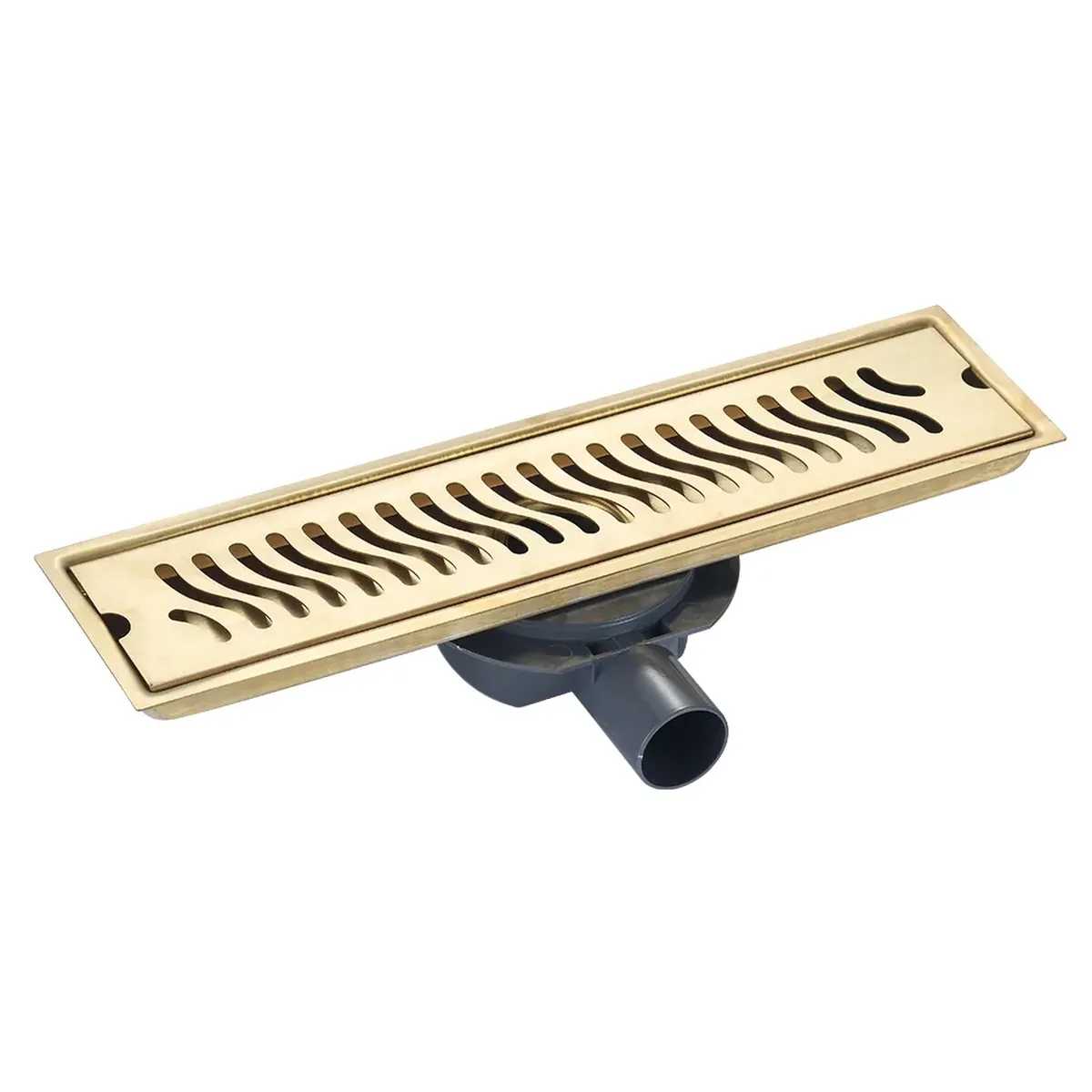

Gold wave pattern linear shower drain in brushed gold finish

Design Highlights: The wave-shaped (or bean-shaped) slot pattern creates a rhythmic, flowing visual rhythm across the grate surface — evoking movement and water. This decorative pattern pairs beautifully with marble-look tiles, warm-toned stone, and brass or gold fixture suites. Unlike plain linear slots, the wave pattern adds an artistic touch while maintaining excellent drainage performance (open area approximately 30%).

PVD Gold Finish: The brushed gold finish is applied through Physical Vapor Deposition (PVD), a vacuum-coating process that bonds a thin layer of gold-toned metal to the 304 stainless steel substrate. PVD coating is far more durable than electroplating — it resists tarnishing, fingerprint smudges, and water spots, and passes 24+ hours of salt spray testing. The brushed texture hides daily wear while maintaining a warm, premium appearance.

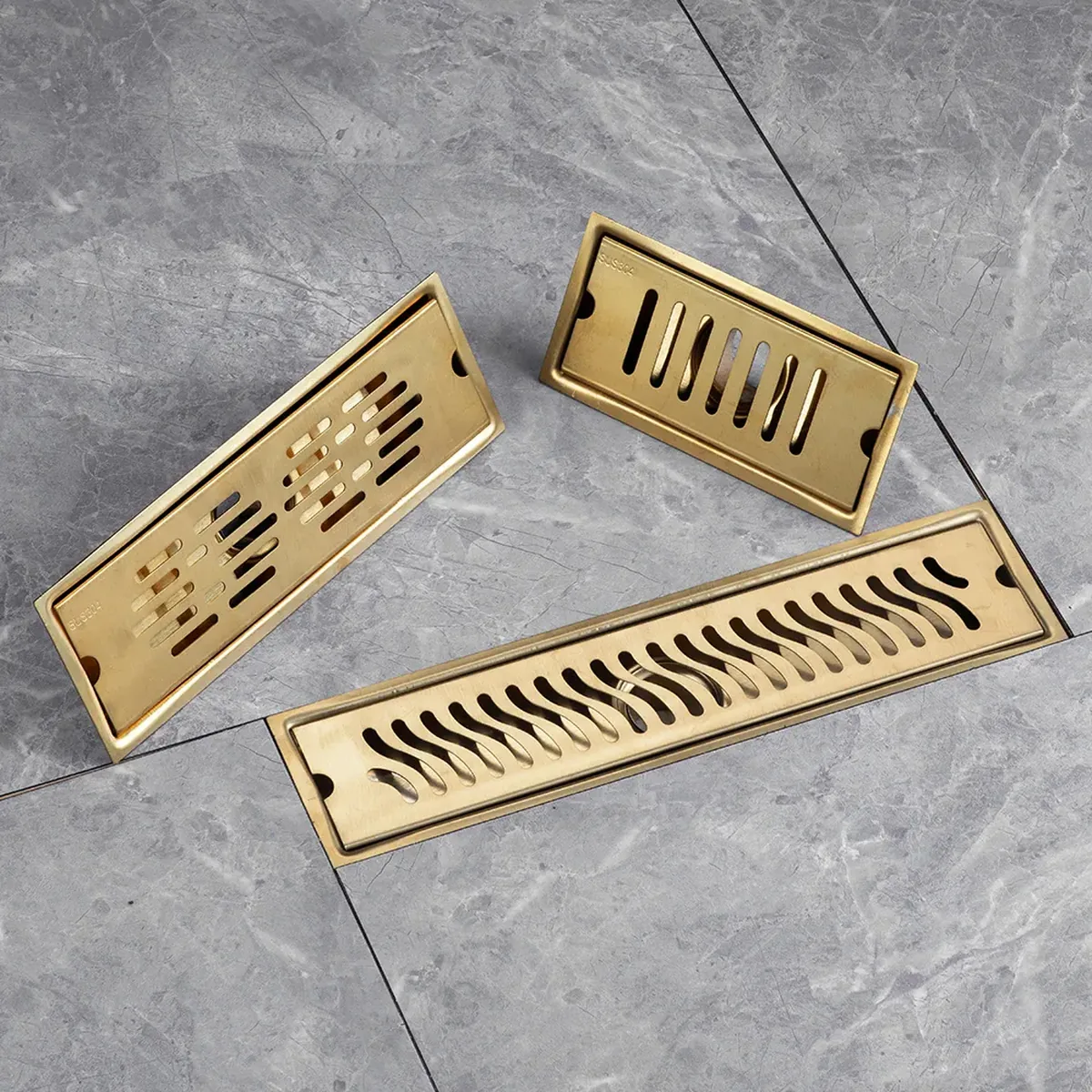

Multiple gold linear drain grate styles installed on gray marble tiles

Construction: The drain body is precision-formed from 304 stainless steel (1.0-1.2mm gauge), with a 2.0mm removable grate. The integrated trap body provides a 50mm water seal for reliable odor protection. Side outlets (50mm) are available in vertical or horizontal orientation. A bonding flange is included for waterproof membrane integration.

Flange Options: Two mounting flanges are available for the same wave grate. The standard flange suits new-build screed and normal tile thickness. The wide flange extends 20-25mm beyond the grate on each side, so it covers cut tile edges and grout lines instead of leaving them exposed — the practical choice for bathroom renovation and tile-over work on floors that are not perfectly level, and for installers who want a forgiving margin around the drain opening.

Wide flange gold wave linear shower drain with extra-wide mounting frame

Sizing: Standard lengths are 300mm, 400mm, 600mm, 800mm, and 1000mm. Custom lengths and outlet positions are available for OEM orders. The drain is designed for wall-mounted installation (along one wall of the shower), with a single-plane floor slope of 1:80.

Matching: This gold drain pairs perfectly with brushed gold tapware, shower fixtures, and accessories. It is part of a coordinated range that also includes point drains and floor wastes in the same gold finish for full bathroom consistency.

Technical Specifications

Material	304 Stainless Steel + PVD Gold
Finish	Brushed Gold
Grate Pattern	Wave / Bean Slot
Standard Lengths	300mm, 400mm, 600mm, 800mm, 1000mm (custom)
Width	50mm
Flange	Standard or wide (+20-25mm each side)
Outlet	50mm (vertical or horizontal)
Water Seal Depth	50mm
Body Thickness	1.0-1.2mm
Grate Thickness	2.0mm

Installation Guide

Installation Steps:

1. Prepare the floor: Ensure the subfloor is level and clean. Plan the drain position along the shower wall, matching the finished shower width.

2. Connect the waste pipe: Connect the drain outlet (50mm) to the building waste pipe. Test-fit before final positioning.

3. Set the drain: Place the drain at finished floor level. The top of the grate should be flush with the tile surface (not protruding). Use a single-plane slope of 1:80 from the opposite wall toward the drain.

4. Waterproofing: Bond the drain flange to the waterproof membrane. Ensure no gaps around the flange.

5. Tile: Lay large-format tiles up to the drain edges. The wave grate can be removed during tiling and replaced after grouting.

6. Final check: Remove the grate, check for debris, and flush with water. Confirm the grate sits level and flush with the tile surface.

Request Gold PVD Drain Samples

See and feel the brushed gold finish before ordering. We ship sample grates within 5-7 working days.

Request Samples

Related Products

Architect Series Linear Shower Drains

Professional-grade linear shower drains designed for luxury hotels, spas, and high-end residential projects. Features premium finishes, adjustable feet, and customizable grate options. Available in 201 and 304 stainless steel (316 on request) with standard lengths 300/400/600/800/1000mm and custom sizes.

Learn more →

Bathroom Floor Wastes

Specialized floor wastes designed for bathroom wet room installations. Features compact design with efficient drainage and odor prevention. Available in round and square designs.

Learn more →

Frequently Asked Questions

Is the gold finish real gold?

No — it is a PVD (Physical Vapor Deposition) coating that gives a brushed gold appearance over 304 stainless steel. PVD is durable, tarnish-resistant, and far more practical than real gold plating for wet area use.

What lengths are available?

Standard lengths are 300mm, 400mm, 600mm, 800mm, and 1000mm. Custom lengths and outlet positions are available for OEM/ODM orders (MOQ 50 pieces).

Can I get matching point drains in gold?

Yes — we offer matching gold PVD floor wastes and point drains in the same finish. Contact us for a full bathroom package.

Will the gold finish tarnish in a wet shower?

No. PVD coating is highly resistant to tarnishing, water spots, and corrosion. With regular rinsing, the finish will maintain its appearance for the life of the drain. Avoid abrasive cleaners.

Do you offer a wide flange version for tile-over installation?

Yes. The wide flange extends approximately 20-25mm beyond the grate on each side, covering cut tile edges and grout lines. It is the recommended option for renovation and tile-over projects where the existing floor is not perfectly level. The grate, gold PVD finish and 50mm outlet are identical to the standard version.
