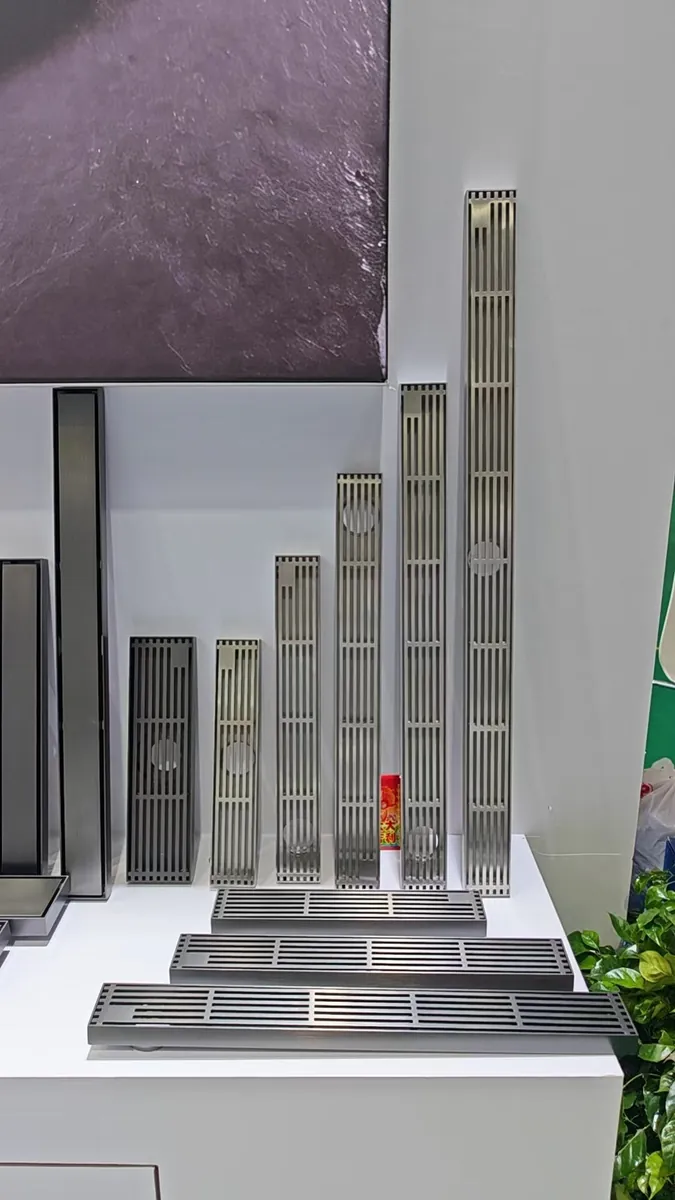

Linear Shower Drain Grate Styles: Patterns, Finishes and Lengths Explained
A linear shower drain is only as good as its grate. The channel body is hidden beneath the tile, but the grate sits on the surface - it is the one part everyone sees, touches, and walks on. This guide walks through every major linear drain grate style, their finishes, standard lengths, and how to choose.
Why Grate Style Matters
The grate must allow water entry, support foot traffic, resist corrosion, and match the tile aesthetic. A poorly chosen grate undermines the whole design.
The Four Main Grate Patterns
1. Linear Slot Grate
The most common pattern: narrow parallel slots running the full length of the drain (5-8mm wide). Best for modern minimalist bathrooms and large-format tiles. Open slot area 30-40% gives excellent drainage.
2. Decorative / Geometric Grate
Repeated geometric shapes (squares, diamonds, circles) instead of straight slots. Best for design-forward bathrooms and patterned encaustic tiles. Open area 20-30%.
3. Tile-In / Infill Grate
A frame that accepts a piece of your floor tile. The drain becomes nearly invisible. The premium seamless look for luxury wet rooms.
4. Perforated / Round Hole Grate
A field of small punched holes. Best for commercial kitchens and public restrooms.
Finish Options
- Brushed Stainless Steel: Default, hides water spots, most versatile
- Matte Black PVD: Deep non-reflective black, pairs with black tapware and dark tiles
- Polished / Mirror: Pairs with polished chrome fixtures, traditional bathrooms
- Custom PVD: Gold, bronze, gunmetal - match designer tapware
Standard Lengths
| Length | Typical Use |
|---|---|
| 300mm (30cm) | Compact showers, powder rooms |
| 400mm (40cm) | Small showers |
| 600mm (60cm) | Standard residential showers |
| 800mm (80cm) | Large showers |
| 1000mm (100cm) | Walk-in wet rooms |
| Custom | Spa showers, commercial projects |
Best practice: match drain length to finished shower width.
Choosing the Right Grate
- Minimalist large-tile wet room: linear slot, brushed or black
- Patterned vintage tiles: decorative geometric
- Luxury seamless look: tile-in
- High-flow rain shower: linear slot (max open area)
- Commercial: perforated grate (316 stainless on request)
- Budget: brushed stainless linear slot
Melody Drain
Our Architect Series linear drains offer all four grate patterns in brushed 201/304 stainless and matte black PVD (316 available on request). Standard lengths: 300/400/600/800/1000mm, with custom sizes available. Every grate is removable for cleaning and sits flush with the tile surface.
Contact us to request grate samples.
